This camera has undergone a comprehensive upgrade, featuring a 12MP 1/2.3-inch sensor with support for EIS and GyroFlow stabilization, HDMI output, a detachable lens protective cover, replaceable ND filters, a 128 x 64 OLED screen display, a replaceable battery, a Type-C port (5-20V input), CVBS real-time output, and serial PWM control, delivering a powerful and versatile user experience.
For recording, the camera supports high-definition resolution and high frame rates up to 4K@30fps, meeting the demands for crisp, detailed visuals while capturing fast-moving subjects, allowing you to relive and share the best moments effortlessly. Its built-in gyroscope enables EIS and GyroFlow stabilization, ensuring smooth and steady video output, even during dynamic shooting scenarios.
The lens is fortified with a protective cover and supports replaceable ND filters, optimizing recording quality under various outdoor lighting conditions for more natural and professional results. The 128 x 64 OLED screen provides a clear, at-a-glance view of various statuses, making operation intuitive and efficient. With CVBS and HDMI real-time output, the camera combines FPV (First Person View) and recording capabilities, ideal for real-time monitoring and capturing footage simultaneously.
A standout feature is the pre-record function. When activated, pressing the shutter retains the previous 15 seconds of footage (at 1080P 60fps), ensuring a more complete recording process. This is particularly useful for scenarios like fishing, where unexpected moments are critical, helping you capture every highlight while reducing storage concerns from extended recording.
The camera supports serial and PWM control, enabling remote operation via connection to a flight controller (BF) serial port or M6. A serial port connection is recommended, with detailed settings available in the manual.
Specifications: The camera uses a SONY IMX377 (12MP) image sensor and supports video resolutions including 4K@30fps, 2.7K@60fps, 2.7K@30fps, 1080P@120fps, 1440P@60fps, and 1080P@60fps, with videos saved in MP4 format. It supports video saving during sudden power-offs. The interface is USB-C, with a USB serial converter for the serial port and WiFi support. It accommodates Micro SD cards up to 512GB (SAMSUNG 128GB U3 recommended; 2.7K60/2.7K50/1080P120 require U3 or above, others require U1 or above). It includes a buzzer and microphone, accepts DC 5~20V via Micro-USB power input, and has an 850mAh 3.7V replaceable battery. The field of view is adjustable (Large: 155?, Middle: 142?, Small: 130?), with an auto shutter (1/30, 1/50, 1/60, 1/100, 1/120, 1/240) and ISO settings (Auto/100/200/400/800/1600/3200). The maximum working current is 500mA@DC 5V, with a runtime of approximately 60 minutes (4K30fps), 110 minutes (1080p60fps), or 135 minutes (1080p30fps). The net weight is 49g (with battery) or 35g (without battery), and dimensions are 66.54020mm.

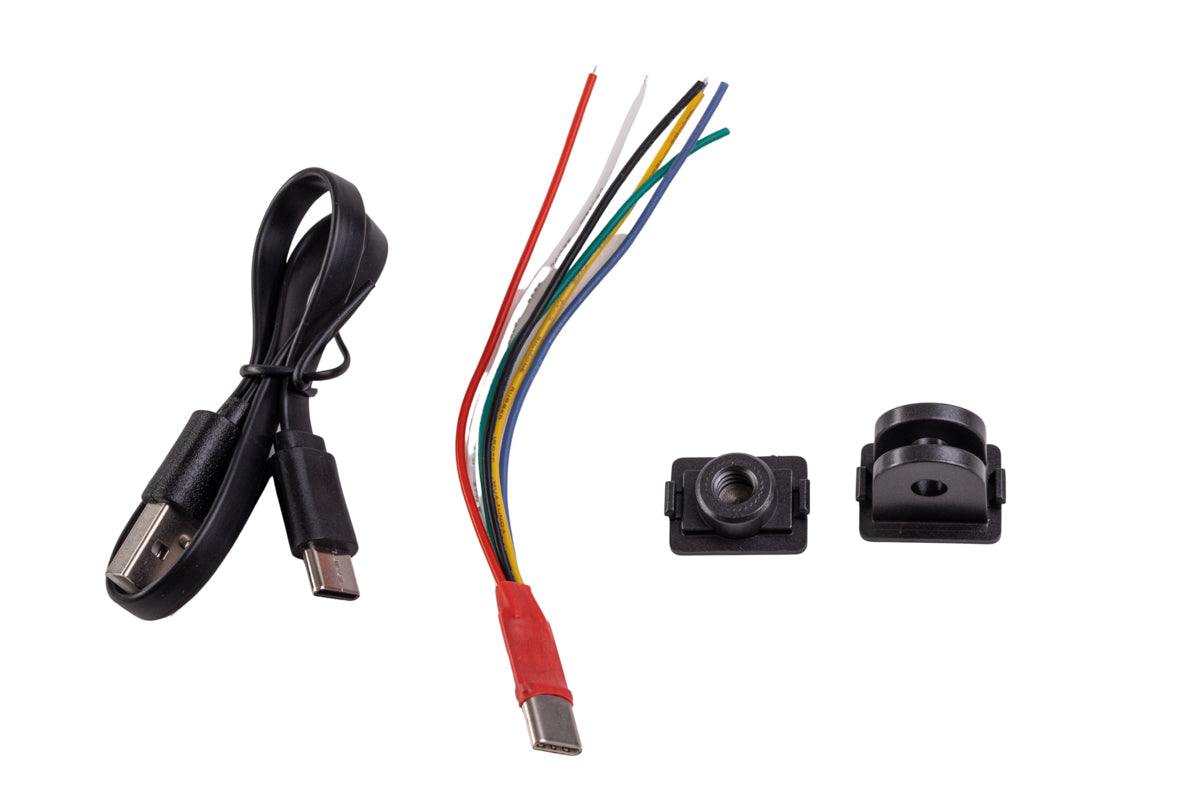

Package Contents: 1x Camera, 1x 1/4 Tripod Adapter, 1x Mount, 1x Battery, 1x USB Cable, 1x Type-C Control Cable.

Sensor and Stabilization:

• 12MP 1/2.3-inch SONY IMX377 sensor
• Supports EIS and GyroFlow stabilization for smooth video output

Recording Capabilities:

• Up to 4K@30fps, 2.7K@60fps/30fps, 1080P@120fps/60fps, 1440P@60fps
• Video format: MP4
• Supports video saving during sudden power-offs

Lens and Filters:

• Detachable lens protective cover
• Replaceable ND filters for enhanced recording in various lighting conditions
• Adjustable FOV: Large (155?), Middle (142?), Small (130?)

Display and Output:

• 128 x 64 OLED screen for clear status display
• CVBS and HDMI real-time output for FPV and recording

Pre-Record Function:

• Captures 15 seconds of footage (1080P 60fps) before shutter press
• Ideal for fishing or capturing unexpected moments
• Reduces storage concerns for long recordings

Control and Connectivity:

• Supports serial and PWM control via flight controller (BF) serial port or M6
• Serial port connection recommended (refer to manual for settings)
• USB-C interface, USB serial converter, WiFi support

Storage and Power:

• Supports Micro SD cards up to 512GB (SAMSUNG 128GB U3 recommended; U3 required for 2.7K60/2.7K50/1080P120, U1 for others)
• Micro-USB power input: DC 5~20V
• Replaceable 850mAh 3.7V battery
• Runtime: 60 mins (4K30fps), 110 mins (1080p60fps), 135 mins (1080p30fps)
• Max working current: 500mA@DC 5V

Additional Features:

• Built-in buzzer and microphone
• Auto shutter: 1/30, 1/50, 1/60, 1/100, 1/120, 1/240
• ISO: Auto/100/200/400/800/1600/3200

Physical Specs:

• Net weight: 49g (with battery), 35g (without battery)
• Dimensions: 66.54020mm

Package Contents:

• 1x Camera
• 1x 1/4 Tripod Adapter
• 1x Mount
• 1x Battery
• 1x USB Cable
• 1x Type-C Control Cable
