SAT Variable Velocity Device Piston for AEG (VVD)

By SAT

SAT Variable Velocity Device Piston for AEG (VVD)

By SAT
Sale
Current Price$30.02
Original Price $89.08
SKU SAT-VVD01

Specifications:

Color Red
Country Taiwan
Length (mm) 135
Net Weight (g) 200
Platform ELECTRIC (AEG)
Replica Type RIFLE


Product Description:

SAT Variable Velocity Device Piston for AEG (VVD)

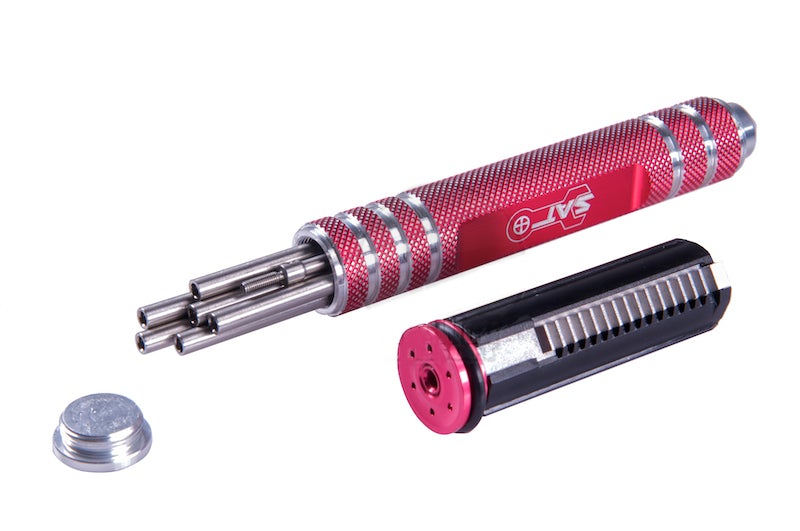

Include Polymer Piston With Piston Head (Steel Full Teeth)
The piston has head venting that can adjust to three different positions to alter the air flow to adjust the power generated
The piston installs into a normal gearbox and then the tool can be used to adjust the valve setting from outside the gun (via the barrel).
Suitable For Tokyo Marui Version2/ 3 Gearbox (Can Not Fit For Marui Next Generation Gearbox (i.e. shock recoil) nor will it fit into PSG-1 gearboxes or extended cylinders)
The adjustment tool is made up of a hollow metal handle and a set of metal rods. The rods can screw together end-to-end to a total combination length of 700mm. Of course you only have to use as much length as you need. Each segment has a small hole running through it which can be used with a small Allen key to get much better torque grip on it to tighten and loosen the components. The valve on the VVD piston is rather tight so the tool has to be screwed together tightly to may adjustment easier. Similarly, the tool will likely need a pair of small Allen tools to loosen if the rods are screwed together more than finger tight.

Although a new product, some testing has been performed prior to release. The VVD was tested in a version 2 gearbox inside an M4A1 with two different springs. In each case, the guns where tested for the FPS values at the 3 positions of the VVD; the results are as follows:

1.9 Joule Spring, 375mm Inner Barrel, 0.2g 6mm BBs.
- Position 1: 450 FPS (full power)
- Position 2: 340 FPS (20% drop )
- Position 3: 270 FPS (40% drop)

1.3 Joule Spring, 375mm Inner Barrel, 0.2g 6mm BBs.
- Position 1: 380 FPS (full power)
- Position 2: 315 FPS (17% drop)
- Position 3: 240 FPS (41% drop)

The valve regulates well at a variety of levels and maintains consistant shot-to-shot reading across all levels with different springs. That said, it is tuned for the higher power end of the spectrum and functions best with high power springs.

A 450 FPS weapon can be tuned for optimum performance for outdoor use but then dropped to 340 FPS for short range games and then dropped right down to 270 FPS for indoor games. An expensive gun that is terribly high performance could only be used in outdoor and high power games but this simple mod lets you use it any game simply by dropping the power.

A note regarding cheating

We does not condone cheating and clearly this device could be used to alter FPS power of guns after clearing a pre-game power testing. We would like to point out that cheating in Airsoft is ALWAYS a possibility.

Players can alter post-tested gun labels, they can sneak in special ammo, they can refuse to call their hits. At the end of the day, cheating is done by cheaters and the only way to regulate such things is to stick to playing with people you can trust. If your playing with good people, using a VVD to cheat should be no more of an issue then not calling your hits.

That said, we do respect that game sites will reserve the right to restrict the VVD if they feel it is a risk. We provides top quality products and expert customer service but it is you who has to work out if your local site will let you use your specific technology or not.
